Ceramic Coating

Product Ceramic Coating

Cerazan^®
Waterborne Nano Silicon Paints

What is Cerazan^®?

Cerazan speciallized polymers are condensed forms of organic-inorganic complex nano materials and products are typically provided low viscosity liquids. Two basic classes of Cerazans are vailable.

The 1st Silicon Ladder Polymers which can be activated to form a crosslinked network through the additional of heat. And it contains over 95% non flammable materials which has good surface hardness, superior chemical resistance and heat resistance. Cerazan® polymers have exceptional high temperature stability, anti scratch property and, once cured, can be exposed to harsh thermal and chemicals environments in accordance with hybrid technology.

Technology Innovation

Silicon Ladder Polymer

· Competitive price through localization
· Curable at Low Temperature / RT ? under 150°C
· Good adhesion for variety substrates
· Good pigment dispersibility
· Easy to control the NV

Polyhedral Oligomeric

3 dimension hybrid process with organic polymer through FLOWTECH’s Independent new technology.

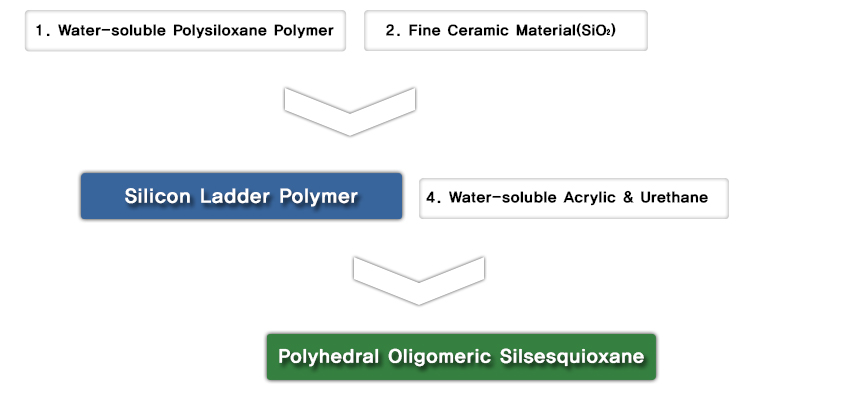

Manufacturing Process & Main Ingredients

Characteristic of Cerazan^®

Characteristic of 1st Silicon Ladder Polymer

Heat Stability	500°C ~1,100°C
Cold Resistance	- 60°C
Chemical Resistance	Organic solvents insoluble, no change HCL 20%
Surface Hardness	Mishibishi pensil 5~7H
Electrical Characteristics	Moisture absorption ratio below 0.3%
Water Repellant
Gas Permeability	Permanent
Light Transmittance	94%

Contains over 95% non flammable materials.
Offers good hardness film and good heat resistance.
Suitable for thin-layer coatings.
Suitable for substrates without finishing process.

Characteristic of 2st POSS(Polyhedral Oligomeric Silsesquioxane)

Heat Stability	Below 250°C
Cold Resistance	- 30°C
Chemical Resistance	M.E.K solvents rubbing 100 pass, no change HCL 20%
Surface Hardness	Mishibishi pensil 2~5H
Electrical Characteristics	Moisture absorption ratio below 0.3%
Water Repellant	Permanent
Gas Permeability
Light Transmittance	91%

In accordance with organic and inorganic hybrid process, it can be applied for almost all industrial applications. It offers high durable film, good flexibility, no crack with thick film and good adhesion

Application of Cerazan^®

Concrete coatings
- Concrete floor coating - Semi-permanent roof water repellant coatings - Anti efflorescene - Clean water repellant for architecture - Non slip coatings - Concrete surface enhancer - Anti dust agent
Architecture coatings
- Interior & Exterior coatings for Architecture - Anti mildew coatings - Anti pollution coatings - Flame retardant coatings
Plant coatings
- Anti corrosion coatings for plant - Oil pipeline corrosion resistance coatings - Salt damage resistance - Heat stable coatings refined oil plants
Marine and heavy duty coatings
- Anti fouling coatings - Corrosion resistance coatings. For heavy duty - Friction control coatings - Salt damage resistance for sea structure - Flame retardant coatings for ship interior - No slip coatings for deck
Metal anti-oxidant coatings
- Corrosion resistance for PCM - Anti finger print and anti dirt - Plating, Metal anti oxidant coatings - Color coating for exterior panel
